Lenovo ThinkSystem 440-16e - Storage controller - 16 Channel - SATA 6Gb/s / SAS 12Gb/s - low profile - PCIe 4.0 x8 - for ThinkSystem SR530; SR590; SR630; SR630 V2; SR645; SR650; SR650 V2; SR665; ST650 V2

• Enhanced connectivity
  Equipped with a 36-pin 4x Mini SAS HD (SFF-8644) connector, the Lenovo ThinkSystem 440-16e storage controller ensures high-speed, reliable connectivity for your storage devices, supporting up to 16 channels for extensive storage options.
• Robust performance
  Featuring a Broadcom SAS3816 processor and a data transfer rate of 12 Gbit/s, this storage controller is designed to handle intensive data workloads, ensuring smooth and efficient operation of your hard drives and solid state drives.
• Versatile compatibility
  With support for both SATA 6 Gb/s and SAS 12 Gb/s interfaces, the Lenovo ThinkSystem 440-16e offers flexible compatibility with a wide range of storage devices, making it a versatile choice for diverse IT environments.
• Advanced features
  This storage controller comes with an array of advanced features including CacheCade, FastPath, and JBOD support, enhancing the performance and reliability of your storage solutions.
• Reliable operation
  Designed to operate within a wide range of environmental conditions and compliant with multiple standards, the Lenovo ThinkSystem 440-16e ensures dependable performance and adherence to global regulatory requirements.

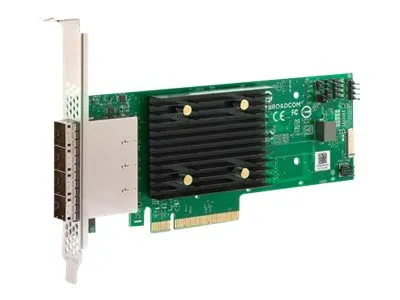

The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.

• PCIe 4.0 x8 host interface
• 12Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
• PCI low profile, half-length form factor
• 16x 12Gbps SAS/SATA ports for connectivity to 16x internal drives
• Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs
• Connectivity for up to 1024 external SAS or SATA drives
• Up to 12 Gbps throughput per port
• Four external x4 HD Mini-SAS connectors (SFF-8644)
• Support for external storage systems and tape backup units
• High performance architecture with very deep queue depth
• Advanced power management support
• Support for SSP, SMP, STP, and SATA protocols
• End-to-End CRC with Advanced Error Reporting
• Spread Spectrum Clocking for EMI reductions
• Supports 512e, 512n and 4K (when available) formatted drives
• Compliant with Disk Data Format (DDF) configuration on disk (CoD)
• S.M.A.R.T. support
