DUPLICATOR INFO

Overview:

Systor's Hard Disk Drive (HDD) Dual Port Duplicators are the best in it's class. A complete standalone unit that can clone a 3.5" and 2.5" hard drive to multiple hard disks alternately in a single touch of a button. It copies the data sector by sector from the source drive to the target drives simultaneously, regardless of brand, operating system or format of the drives. The copy includes partition and boot sector information for a perfect clone.

Systor HDD Duplicators are also DoD compliant when it comes to sanitizing / erasing data in the hard drive, this feature has been added to ensure that there are no trace of content left behind and for the consumers security and peace of mind.



FEATURES

General Features:

  • Fits both 3.5" and 2.5" hard drives without the use of an adapter.
  • Complete standalone duplicator, NO software or computer required
  • User-friendly LCD display interface.
  • Easy operation without extra hardware, software and training are required.
  • Self diagnostics when power on.
  • Copy, Compare HDD, PreScan, DoD Compliant Erase functions.

    HDD Sanitization/Eraser Feature:

    • DoD 5220.22-M Data Sanitation Compliant
    • Secure Erase: Deletes and replace the entire hard drive data with zero strings.
    • Permanently wipes sensitive data to counter data remanence.

    Duplication Feature:

    • Copy multiple hard drive simultaneously at once.
    • Copy speed is up to 90MB/sec .
    • Clones hard disk data sector by sector.
    • Supports major brands of 3.5” & 2.5” SATA hard drives & SSD solid state drives.
    • Work equally well cloning any environment, including Windows, Linux and Macintosh.
    • Reproduce the content faithfully, whether the source disk is FAT16/32 or NTFS formatted.

    Note: Copying speed will vary depending on hard drive speed.

    Hardware Feature:

    • The stylish all-black door has built in vents for optimal cooling and air flow to keep your drives running at their best. To further enhance the cooling, included is a rear outtake fan on each drive.
    • A new feature to the hard drive duplicator is the LED status light. This allows the user to keep track of their drives without having to be right in front of the workstation.
    • 40mm rear warm air outtake fan on each drive ensures an optimal cooling environment.
    • Quick, Easy and Hot swappable slot loading dual port drives.
    • High Performance Power Supply.
    • Built to endure long-time operation.

    SPECIFICATIONS

    FEATURES
    Device Type
    • Dual Port
    Interfaces
    • Serial ATA (SATA)
    Load Type
    • Slot Loading
    Maximum Transfer Speed
    • 5.4GB/min (90MB/sec). Actual performance isdependent on HDD transfer speeds.
    Capacity
    • Supportsthe largest sized devices available on the market
    Operating Type
    • Stand-alone,FPGA-based operation (Non PC-based)
    Supported Languages
    • English
    • Japanese
    • Spanish*
    • Portuguese*

      (* Not available on all models)
    LCD Display
    • Backlit Monochrome LCDDisplay
    Buffer Memory
    • 64MB - 1 target
    • 128MB - 3 target and larger
    HDD Hot Swap
    • Yes
    Control Panel
    • 4 Push Buttons (▲, ▼,OK, ESC)
    Color
    • Black


    FUNCTIONS
    Copy Modes
    • System & Files (Quick Copy Mode):
      Copies data and skips empty space. Only supportsWindows, Mac, and Linux.
    • Whole Device/Media:
      Copies from the initial sector to the end, bit-by-bit.No format limitations. Supports all systems andproprietary formats, along with various brands.
    • All Partitions*:
      Copy or skip HPA, DCO, unknown partitions, modifiedformats, etc., defined by settings.
    • Percentage*:
      Copies the selected range of the source's totalcapacity, starting from the initial sector.

      (* Not available on all models)
    Compare Function
    • Bit-by-bit data comparison
    Sanitization Modes
    • Quick Erase:
      Erases the table of contents of file system of targethard drives.
    • Full Erase (NIST SP 800-88 R1):
      Erases the target hard drive's total capacity bit bybit by adding 0s to each bit of each sector.
    • DoD Erase:
      Complies with DoD 5220 standard to fully erase thetarget hard drive by rewriting bit by bit three timesto guarantee data is permanently deleted.
    Read-Only Source Port
    • Yes


    COMPATIBILITIES
    Compatible Devices
    • 2.5"/3.5” SATA HDDs and SSDs
    Supported Formats
    • QuickCopy Function: FAT16/32/64, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac (HFS, HFS , HFSX)
    Whole Device Copy Function
    • All formats, includingproprietary formats: GPT, MBR, and advanced formats
    Supported O/S
    • All (Windows, Mac, Linux, and otherstand-alone systems)


    HARDWARE SPECIFICATIONS
    Power Supply
    • Universal Power:115VAC or 230VAC, 50/60Hz
    Working Temperature
    • 5°C ~ 45°C (41°F ~ 113°F)
    Storage Temperature
    • -20°C ~85°C (-4°F ~ 185°F)
    Working Humidity
    • 20% ~ 80%
    Storage Humidity
    • 5% ~ 95%

    * Specifications are subject to change without notice.


    3 Years Labor & 1 Year Parts Warranty

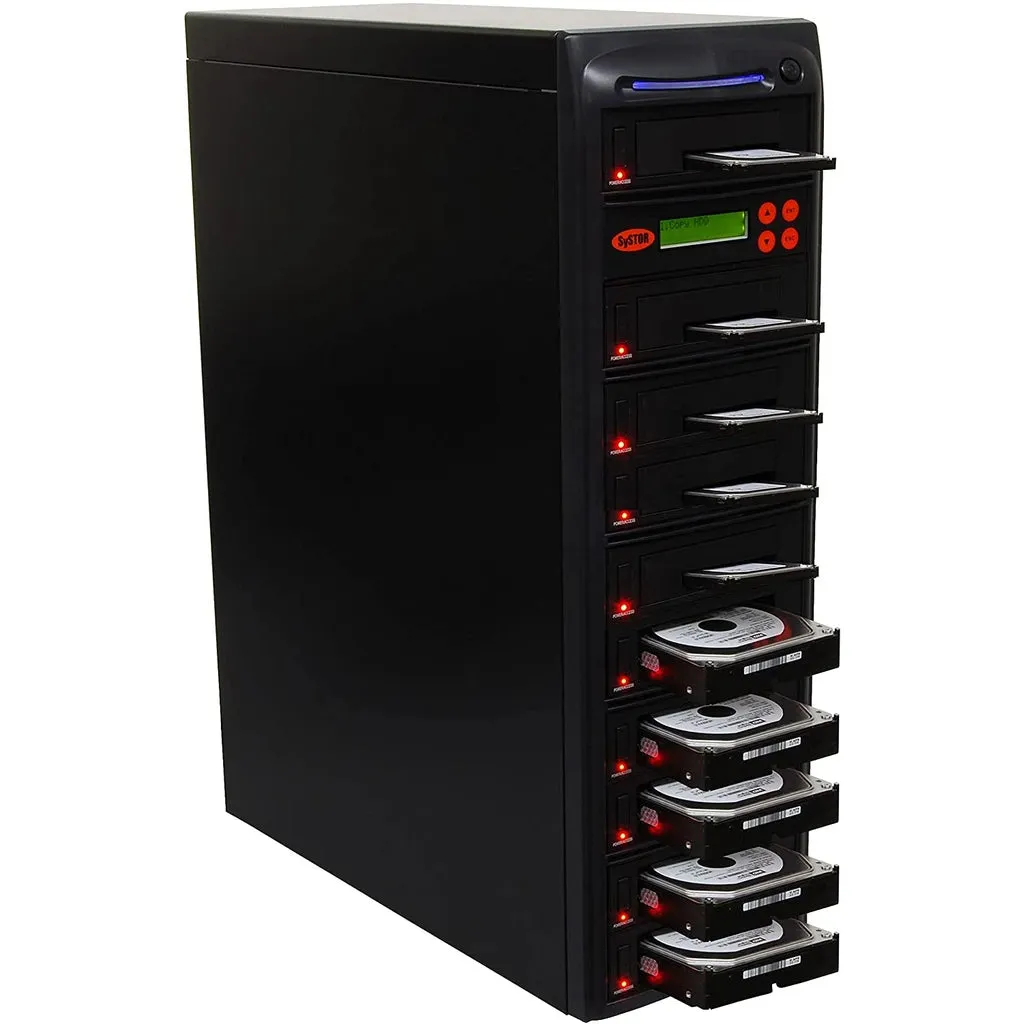

    Systor 1 to 9 SATA SSD HDD Duplicator & Sanitizer - 5.4GB/Min - Dual Port Copy & Erase 3.5" & 2.5" Hard Disk & Solid State Drive (SYS109HS-DP)

    $ 56.15

    $ 43.19
